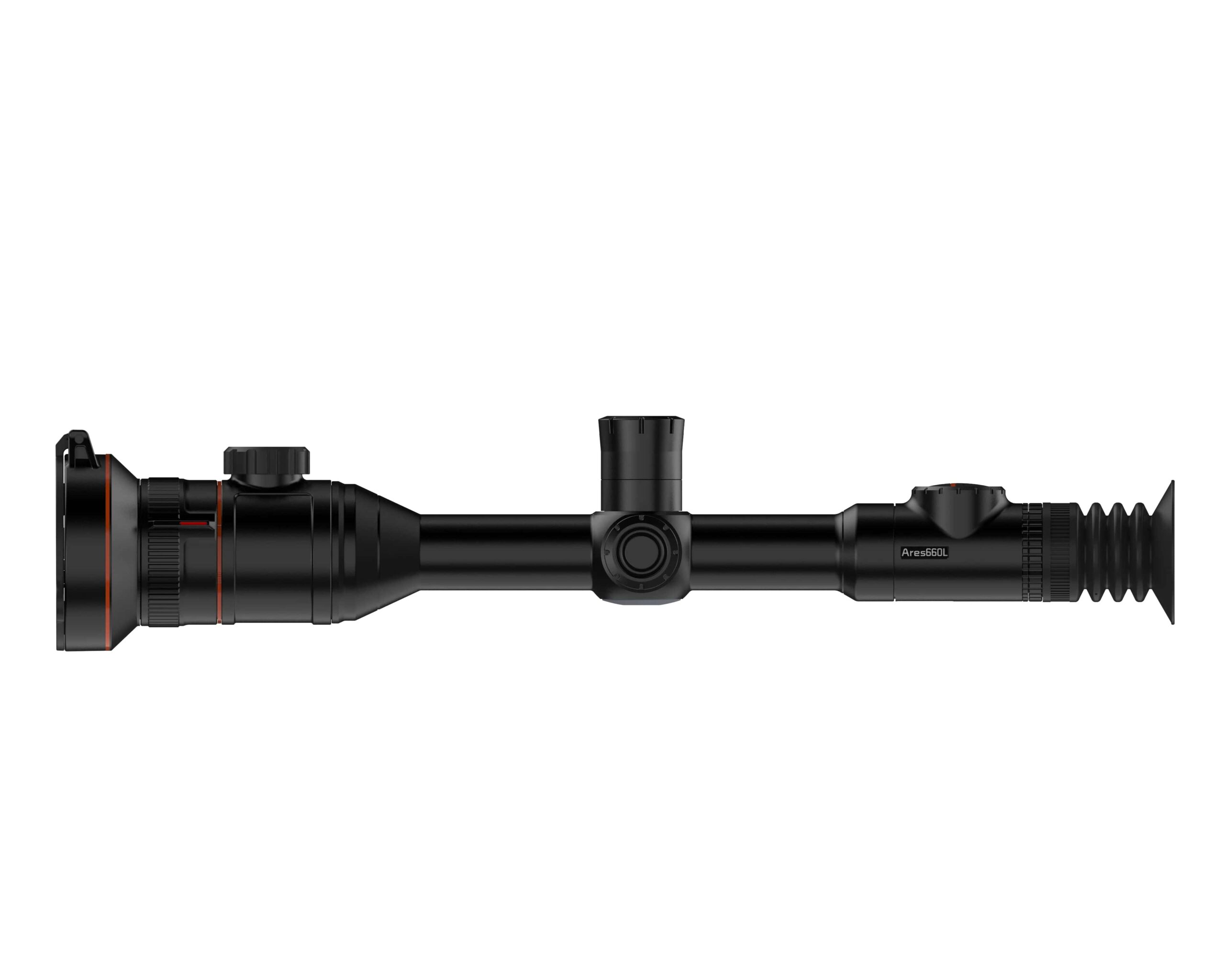

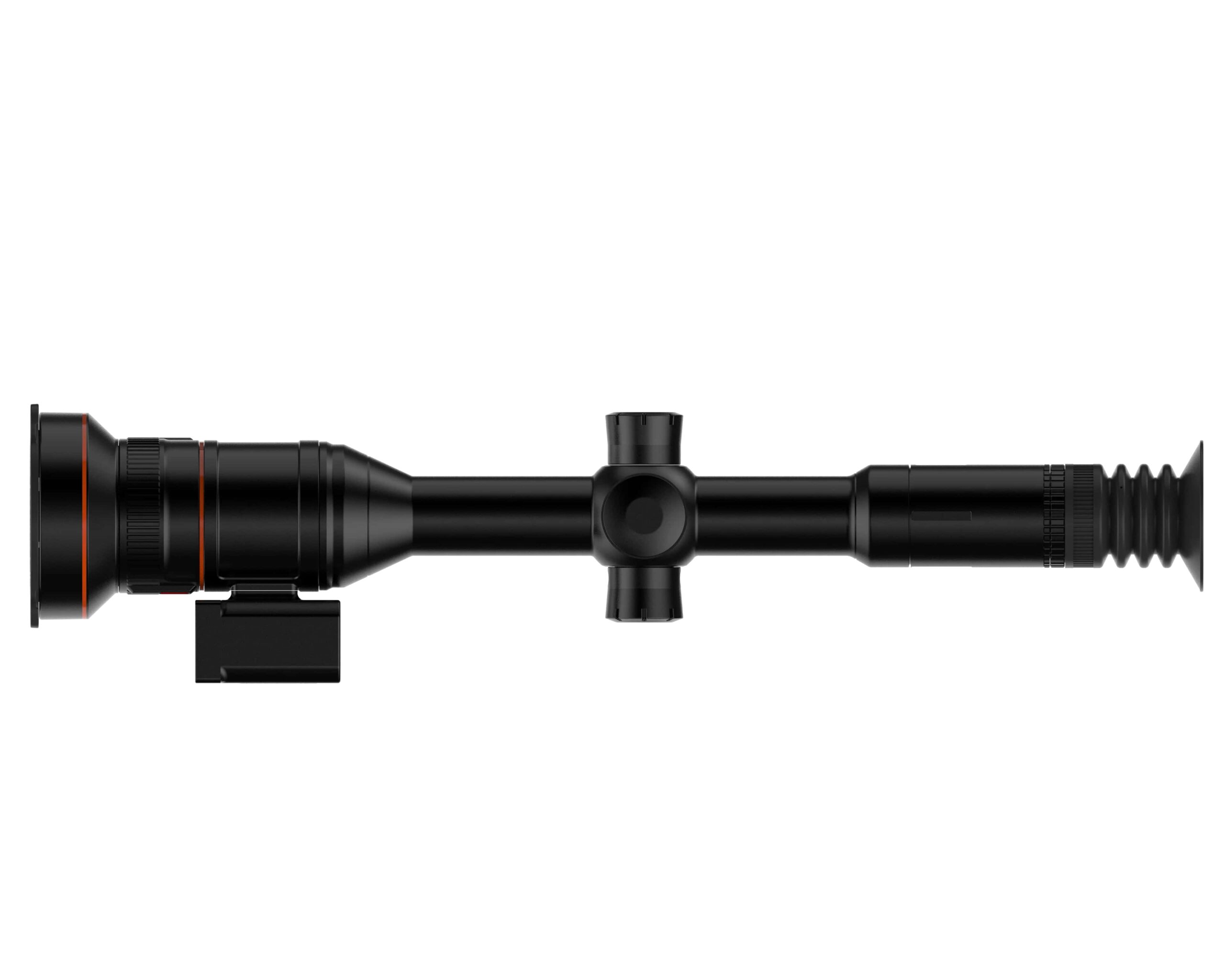

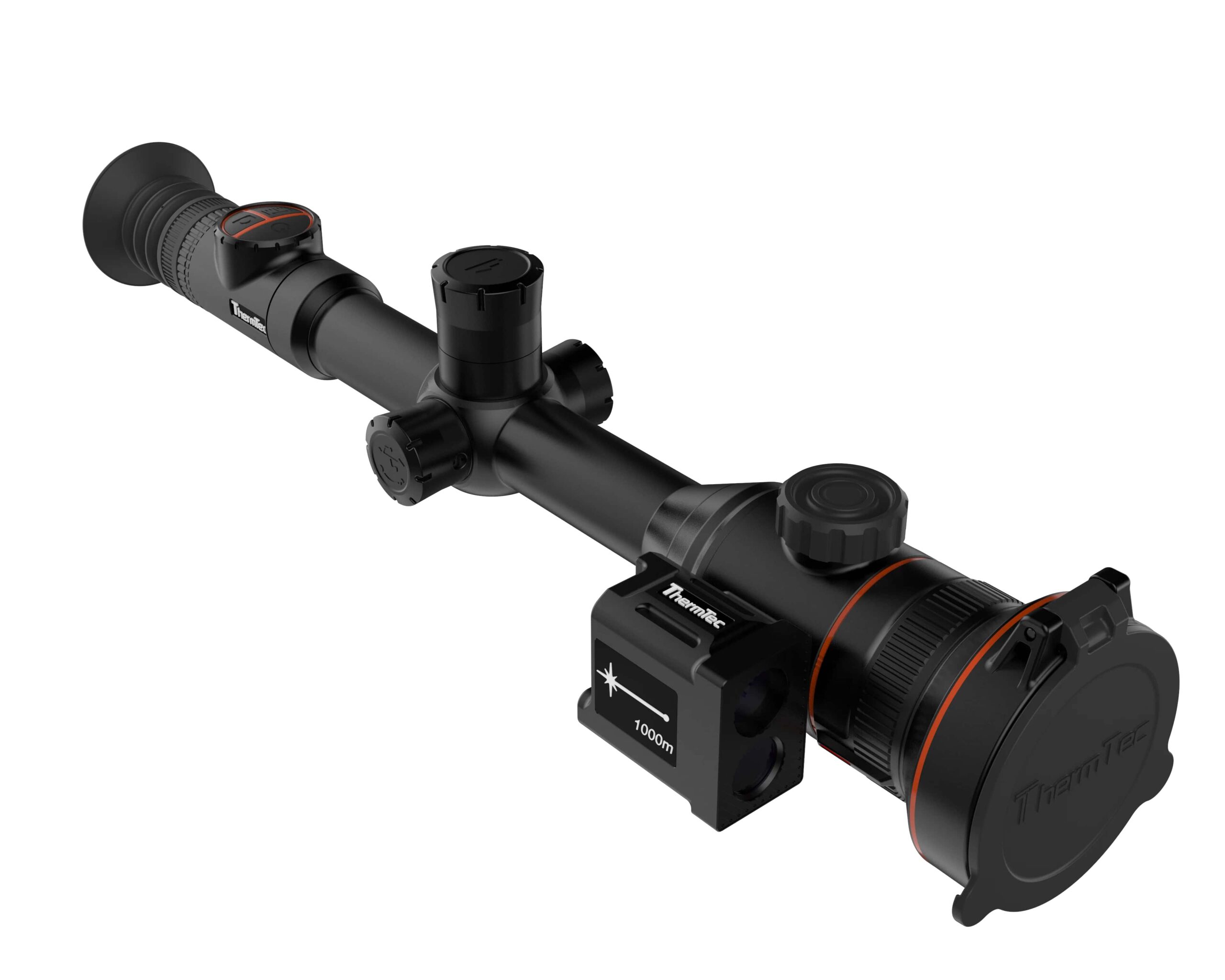

ThermTec Ares 360 LRF Thermal Scope
ThermTec Ares 360 LRF Thermal Scope - Image 2
ThermTec Ares 360 LRF Thermal Scope - Image 3

ThermTec Ares 360 LRF Thermal Scope

Original price was: R80,155.00.Current price is: R68,132.00.

Found it cheaper? We'll do our best to match it  |  Finance available — apply today

Category:

The Ares LRF series from ThermTec showcases a fusion of innovative design and the most recent advancements in thermal imaging technology. Leveraging Thermtec’s exceptionally sensitive <25mk sensor, the Ares LRF range enables swift detection and pinpoint identification of targets.

Experience versatility across diverse scenarios with Thermtec’s industry-leading Dual Lens System. It pairs a wide Field of View (FOV) 20mm lens with a high magnification 60mm lens, providing users the flexibility to switch as per their requirements in mere seconds.

Further enhancing its functionality is the integrated Laser Range Finder (LRF), which assures accurate measurements up to 1000m. The use of premium quality germanium glass along with a F1.0 lens ensures that the Thermtec Ares LRF’s image quality remains sharp, irrespective of the challenging conditions.

Description

20mm + 60mm DUAL LENS

Equipped with the versatility of a 20mm and a 60mm lens, the ThermTec Ares 360L offers the user the convenience to switch between the lenses by simply turning the front focus. With the 60mm lens, this device extends the shooting range far beyond most scopes, while the 20mm lens comes in handy for close-range encounters.

12 MICRON SENSOR

The Ares 360L’s 12-micron sensor outperforms the standard 17-micron sensors found in many units, resulting in a crisper picture and a further identification distance.

LASER RANGE FINDER

Accurately range your targets with the integrated Laser Range Finder (LRF) that delivers precision within 1 meter for up to 1200 meters. Combined with the internal ballistic calculator to give you a precise aiming point at any distance, you’ll never miss a target.

Finance Calculator

*Vat Inclusive



Technical Specifications

Resolution 384*288
pixel pitch 12µm
NETD ≤25mk
Spectral range 8-14µm
Frame rate 50HZ
Objective lens 20/60mm, F/1.0
Field of view 13.1°x9.8% 4.4*x3.3
Magnification 1.8X/5.5X
Digital zoom 1.0-5.0X smooth &rapid zoom
Eye relief 50mm
Exit pupil 6mm
Diopter -5 ~ +5D
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024×768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard 30mm rings
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Laserranging 1000m
Image calibration Via lens cover
Photo/video playback Yes
Built-in memory 16GB
Type C Data transfer
Wi-Fi Yes
Battery type Replaceable, 18650 or 18500 battery
Built-in Battery 5000mAh, rechargeable
Battery life 12h
Operating temperature -20℃-+50℃
IP rating IP67
Weight, g 1250
Dimension,mm 438(L)x84(W)x105(H)
External cable USB data cable
Other accessories 2x standard 30mm rings, eyeshade and etc.
